ATEN Kontrol System - Kontrol Kutusu (ATEN Control System - Compact Control Box Gen. 2)
Memory | |
SDRAM | 512MB |
Flash | 8GB |
Interfaces | |
Serial |
• 1 x Programmable Bi-directional RS-232/422/485 Port (1 x 5-Pole Terminal Block Connector, configurable via pin assignments); – Baud Rate: 300 to 115200 (default: 9600); – Data Bit: 8 (default) or 7; – Stop Bit: 1 (default) or 2; – Parity: None (default), Even or Odd; – Flow Control: None (default) or RTS/CTS • 1 x Bi-directional RS-232 Port (1 x 3-Pole Terminal Block Connector); – Baud Rate: 300 to 115200 (default: 9600); – Data Bit: 8 (default) or 7; – Stop Bit: 1 (default) or 2; – Parity: None (default), Even or Odd |
IR/Serial |
• 2 x Programmable IR / Uni-directional RS-232 Port (2 x 2-Pole Terminal Block Connector); IR: TTL level (0 to 5 V) – Carrier Frequency: 10KHz~455KHz; Serial: Uni-directional RS-232 (0 to 5 V) – Baud Rate: 300 to 115200 (default: 9600); – Data Bit: 8 (default) or 7; – Stop Bit: 1 (default) or 2; – Parity: None (default), Even or Odd |
Relay |
• 4 x Relay Channel (2 x 4-Pole Terminal Block Connector); • Normally open, isolated Relays; • Contact Rating: Max 24 VDC, 2A |
I/O |
• 2 x Programmable Digital Input / Output Channel (1 x 3-Pole Terminal Block Connector); Digital Output: 300 mA sink from 24 VDC Digital Input: – VDC Mode Input Voltage Range: 0 to 24 VDC; Programmable Range: 1 to 24 VDC; – Dry Contact Mode Pull-up 2k ohms to + 12 VDC |
Ethernet |
• 1 x RJ-45 Female, 10/100/1000Base-T • Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH • DHCP mode - The following default IP settings will be used if no IP is assigned within 30 seconds: IP: 192.168.0.60 Subnet Mask: 255.255.255.0 |
VDC |
• 1 x 12 VDC Output Port (1 x 2-Pole Terminal Block Connector); • Power Supply: 12 VDC, 1A Max |
USB | 1 x USB Type A |
Switches | |
Power | 1 x On/Off Switch |
IR Learning | 1 x IR Receiver LED |
Reset Button | 1 x Semi-recessed Pushbutton |
Power Consumption |
AC110V:4.3W:82BTU AC220V:4.5W:83BTU |
Power | |
Maximum Input Power Rating | Internal Power: 100-240 VAC, 50-60 Hz |
Environmental | |
Operating Temperature | 0 – 50°C |
Storage Temperature | –20 – 60°C |
Humidity | 0 - 80% RH, Non-Condensing |
Physical Properties | |
Housing | Metal |
Weight | 1.19 kg ( 2.62 lb ) |
Dimensions (L x W x H) |
20.00 x 16.41 x 4.40 cm (7.87 x 6.46 x 1.73 in.) |
License | |
Basic (free) | 2 free licenses |
Max. No. Allowed | 16 licenses |
Array ( [0] => Array ( [id] => 2518 [product_relation_type_id] => 3 [product_id] => 12678 [related_product_id] => 9119 [description] => [created] => 2023-09-27 22:37:33 [created_by] => 5 [modified] => 2023-09-27 22:37:33 [modified_by] => 5 [ProductRelationType] => Array ( [id] => 3 [name] => Uyumlu [description] => Beraber çalışabilecek ürünler. [created] => 2008-05-27 11:04:21 [created_by] => 1 [modified] => 2008-05-27 11:04:21 [modified_by] => ) [RelatedProduct] => Array ( [id] => 9119 [producer_id] => 3 [name] => ATEN-VM6404H [producer_code] => [slug] => aten-vm6404h [short_description] => 4x4 4K HDMI Matrix Switch with Scaler [long_description] =>

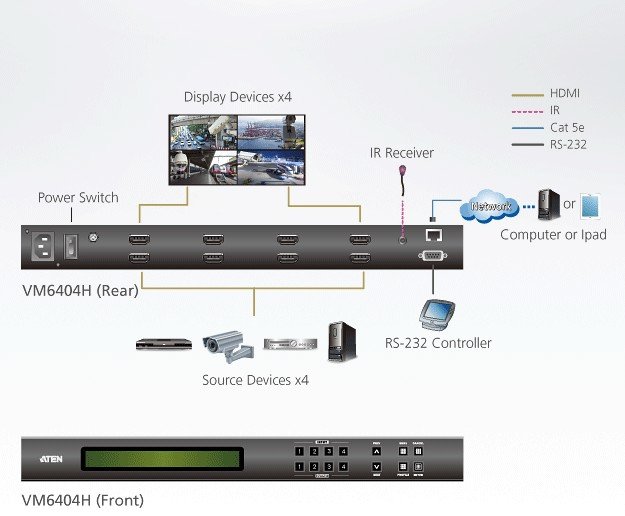

- 4x4 HDMI input/output connections
- Built-in Scaler on each output port converts input resolutions into the display's native resolution, supports scaling 4K resolutions up or down
- Seamless Switch™ Technology – ATEN FPGA engine unifies video formats to provide continuous video streams, real-time switching and stable signal transmissions*
- Video Wall - allows you to create custom video wall layouts via intuitive web GUI*
- EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
- Multiple Control Methods – system management via front-panel pushbuttons, IR, RS-232 and Ethernet (Telnet / Web GUI) connections
- Firmware upgradable
- Rack-mountable (1U design)
* Note: If Seamless Switching is enabled, the video output will not display 3D, Deep Color or interlace (i.e., 1080i) resolutions. To make these features available, you must disable Seamless Switching.
Package Contents
- 1x VM6404H 4 x 4 4K HDMI Matrix Switch with Scaler
- 1x Power Cord
- 1x IR Remote Control
- 1x IR Receiver
- 1x Mounting Kit
- 1x User Instructions
Video Input
Interfaces 4 x HDMI Type A Female (Black) Impedance 100 Ώ Max. Distance 1.8 m Video Output Interfaces 4 x HDMI Type A Female (Black) Impedance 100 Ώ Max. Distance 15 m Video Max. Data Rate 10.2 Gbps (3.40 Gbps per lane) Max. Pixel Clock 340 MHz Compliance HDMI (3D, Deep Color, 4K);
HDCP 2.2 Compatible;
Consumer Electronics Control (CEC)Max. Resolution Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)Max. Distance Up to 15 m Control RS-232 Connector: 1 x DB-9 Female (Black);
Baud Rate: 19200, Data Bits: 8, Stop Bits: 1, Parity: No,
Flow Control: NoIR 1 x Mini Stereo Jack Female (Black) EDID Settings EDID Mode: Default / Port 1 / Remix / Customized
(EDID Wizard Support)Power Connectors 1 x 3-prong AC Socket Maximum Input Power Rating 100-240 VAC;50-60Hz;1.0A Consumption 120VAC,47.6W; 230VAC, 47.5W Environmental Operating Temperature 0-50°C Storage Temperature -20 - 60°C Humidity 0 - 80% RH, Non-Condensing Physical Properties Housing Metal Weight 4.72 kg ( 10.4 lb ) Dimensions (L x W x H) 43.24 x 30.73 x 4.40 cm
(17.02 x 12.1 x 1.73 in.)[private_notes] => [public_notes] => [public_web_notes] => [sold] => 1 [sold_thru_internet] => 1 [visible] => 3 [promote] => [ask_price] => 1 [ask_price_partner] => 1 [deponet_sold] => [deponet_sold_thru_internet] => [deponet_visible] => 0 [deponet_promote] => [deponet_ask_price] => [beek_sold] => [beek_sold_thru_internet] => [beek_visible] => 0 [beek_promote] => [beek_ask_price] => [tiger_item_id] => 40983 [tiger_item_alt1_id] => [tiger_item_alt2_id] => [tiger_item_alt3_id] => [bimelistanbul_item_id] => [bimelistanbul_item_alt1_id] => [bimelistanbul_item_alt2_id] => [bimelistanbul_item_alt3_id] => [deponet_item_id] => [deponet_item_alt1_id] => [deponet_item_alt2_id] => [deponet_item_alt3_id] => [ean] => 4719264642937 [product_warranty_card_id] => [batch_quantity] => [created] => 2017-02-09 14:25:41 [created_by] => 74 [modified] => 2025-04-10 16:36:44 [modified_by] => 74 [keywords] => [TigerItem] => [reserved_stock] => 0 [bimel_ankara_reserve] => [bimel_istanbul_network_reserve] => [bimel_bursa_reserve] => [bimel_ariza_reserve] => [Reserves] => Array ( ) [deponet_ankara_reserve] => [deponet_istanbul_reserve] => [unit_set] => ADET [status] => not_sold_thru_internet [ProductImage] => Array ( [0] => Array ( [id] => 12481 [product_id] => 9119 [name] => ATEN-VM6404H [description] => [uploaded_file_id] => 13429 [default_image] => 1 [created] => 2017-02-09 14:26:37 [created_by] => 74 [modified] => 2017-02-09 14:26:37 [modified_by] => ) [1] => Array ( [id] => 12482 [product_id] => 9119 [name] => ATEN-VM6404H [description] => [uploaded_file_id] => 13430 [default_image] => [created] => 2017-02-09 14:26:45 [created_by] => 74 [modified] => 2017-02-09 14:26:45 [modified_by] => ) [2] => Array ( [id] => 12483 [product_id] => 9119 [name] => ATEN-VM6404H [description] => [uploaded_file_id] => 13431 [default_image] => [created] => 2017-02-09 14:26:58 [created_by] => 74 [modified] => 2017-02-09 14:26:58 [modified_by] => ) [3] => Array ( [id] => 12484 [product_id] => 9119 [name] => ATEN-VM6404H [description] => [uploaded_file_id] => 13432 [default_image] => [created] => 2017-02-09 14:27:05 [created_by] => 74 [modified] => 2017-02-09 14:27:05 [modified_by] => ) ) [ProductCategory] => Array ( [0] => Array ( [id] => 849 [name] => Digital Signage [slug] => digital_signage [description] => [sold_by_bimel] => [parent_id] => 58 [lft] => 1657 [rght] => 1658 [created] => 2013-06-07 15:50:29 [created_by] => 74 [modified] => 2015-09-09 17:13:14 [modified_by] => [ProductProductCategory] => Array ( [id] => 172560 [product_id] => 9119 [product_category_id] => 849 ) ) [1] => Array ( [id] => 630 [name] => HDMI Matrix Switch [slug] => hdmi_matrix_switch [description] => [sold_by_bimel] => [parent_id] => 475 [lft] => 878 [rght] => 879 [created] => 2011-08-17 11:30:14 [created_by] => 7 [modified] => 2015-09-09 17:13:14 [modified_by] => [ProductProductCategory] => Array ( [id] => 172559 [product_id] => 9119 [product_category_id] => 630 ) ) [2] => Array ( [id] => 1031 [name] => 4'lü [slug] => 4_lu [description] => [sold_by_bimel] => [parent_id] => 107 [lft] => 852 [rght] => 853 [created] => 2016-03-18 15:51:51 [created_by] => 7 [modified] => 2016-03-18 15:51:51 [modified_by] => [ProductProductCategory] => Array ( [id] => 172558 [product_id] => 9119 [product_category_id] => 1031 ) ) [3] => Array ( [id] => 1028 [name] => 4'lü HDMI Çoklayıcı [slug] => 4_lu_4 [description] => [sold_by_bimel] => [parent_id] => 156 [lft] => 112 [rght] => 113 [created] => 2016-03-18 14:28:12 [created_by] => 7 [modified] => 2020-01-24 12:40:04 [modified_by] => 7 [ProductProductCategory] => Array ( [id] => 172557 [product_id] => 9119 [product_category_id] => 1028 ) ) ) ) ) [1] => Array ( [id] => 2517 [product_relation_type_id] => 3 [product_id] => 12678 [related_product_id] => 8387 [description] => [created] => 2023-09-27 22:37:33 [created_by] => 5 [modified] => 2023-09-27 22:37:33 [modified_by] => 5 [ProductRelationType] => Array ( [id] => 3 [name] => Uyumlu [description] => Beraber çalışabilecek ürünler. [created] => 2008-05-27 11:04:21 [created_by] => 1 [modified] => 2008-05-27 11:04:21 [modified_by] => ) [RelatedProduct] => Array ( [id] => 8387 [producer_id] => 3 [name] => ATEN-VM5404H [producer_code] => [slug] => aten-vm5404h [short_description] => HDMI Video Matrix Switch, 4 Giriş (HDMI Arayüzlü Kaynak Cihaz), 4 Çıkış (HDMI Arayüzlü Görüntü Aygıtı), Scaler özelliği, Infrared Uzaktan Kumanda Cihazı ile birlikte (4 x 4 HDMI Matrix Switch with Scaler) [long_description] =>

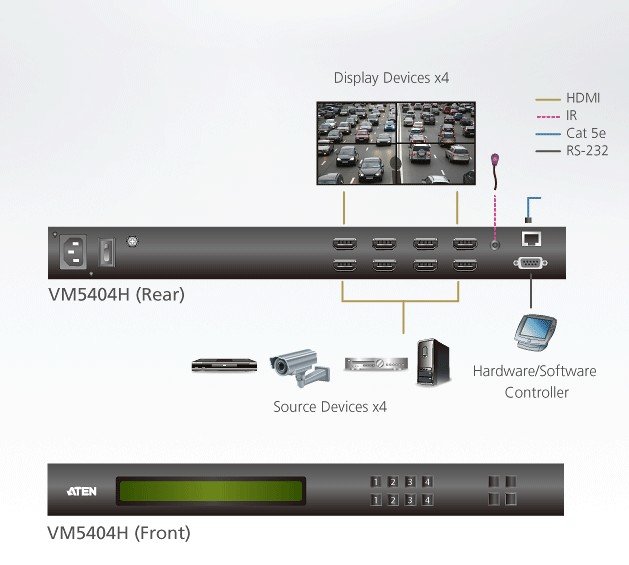

- ATEN-VM5404H, 4 giriş 4 çıkış bağlantı yuvaları bulunan HDMI Matrix Switch cihazıdır. HDMI switch ve HDMI çoklayıcı özelliklerini birarada sunmaktadır.
- 4 farklı HDMI kaynağında bulunan multimedya içeriğin birden fazla ekrana ya da ekranlardan herhangi bir tanesine aktarılmasını sağlar.
- Uzak Mesafe Sinyal İletimi – 15 metre destekler (24 AWG)
- HDMI (3D, Deep color); HDCP 1.4 uyumlu
- Seamless Switch™ – ATEN FPGA tasarım teknolojisiyle görüntü akışı ve görüntüler arasında geçişler kesintisiz, gerçek zamanlı yapılır*
- Video Wall - Gelişmiş web grafik arayüzü kanalıyla kişiye özel video wall tasarımı mümkün
- EDID (Extended Display Identification Data) Uzmanı™ - Ekranın süratli şekilde faaliyete geçmesi ve yüksek kalite görüntü elde etmek amacıyla kaynak cihazın EDID bilgilerini öğrenir, kaydeder ve çıkış port'larına bağlı monitör'lerin EDID ayarlarını dikkate alarak görüntüyü sunmasını sağlar.
- Sistem yönetimi LCD ekran ve önpaneldeki basılabilir düğmeler, IR Uzaktan Kumanda Ünitesi, RS-232 ve Ethernet (Telnet / Web GUI) kanalıyla mümkün.
- Her çıkış port'u Scaler özelliğini destekler. Bu sayede giriş sinyalinden çıkış sinyaline aktarılan görüntünün çözünürlüğü çıkış port'una bağlı görüntü cihazının desteklediği çözünürlük değerlerine uygun hale getirilir.
- Sistem yönetimi çift yönlü RS-232 seri haberleşme ile yapılır.
- Üstün görüntü kalitesi – 480p, 720p, 1080i and 1080p (1920 x 1080)
- HDMI için ESD koruması
- Dolby True HD ve DTS HD Master sesi destekler.
- CEC; Consumer Electronics Control teknolojisini destekler. CEC destekli ve HDMI kablo ile bağlı cihazlar tek bir uzaktan kumanda ile kontol edilebilir.
- Power On Detection özelliği - HDMI sinyal teknolojisini üreten kaynak cihazlardan herhangi bir tanesinin elektriği kapandığı takdirde; ATEN-VM5404H elektriği açık olan HDMI kaynak cihazını geçiş yapar.
- Uzaktan kumanda ile kontrol edilebilir. IR sinyallerini destekler.
- Firmware yazılım güncellemesi yapılabilir.
- Kabinete monte edilebilir.
* Seamless Switching özelliği kullanılırken 3D, Deep Color ya da interlace (i.e., 1080i) çözünürlükleri gibi özellikler devredışı kalır. Bu özelliklerden faydalanabilmek için bu özellik devreiçine alınmalıdır.
Ekran Giriş Arayüzler 4 x HDMI Tip A Dişi (Siyah Renk) Empedans 100 Ώ Maksimum Mesafe 1.8 m Ekran Çıkışı Arayüzler 4 x HDMI Tip A Dişi (Siyah Renk) Empedans 100 Ώ Maksimum Mesafe 15 m Görüntü Maksimum Veri Hızı 6.75 Gbps (2.25 Gbps Per Lane) Maksimum Pixel Clock 225 MHz Uygunluk HDMI (3D, Deep Color)
HDCP 1.4
Consumer Electronics Control (CEC)Maksimum Çözünürlük Up to 1080p Maksimum Mesafe Up to 15 m Yönetim RS-232 Konnektör: 1 x DB-9 Dişi (Siyah Renk)
Baud rate ve protokol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: NoIR 1 x Mini Stereo Jack Dişi (Siyah Renk) EDID Ayarları EDID Mod: Varsayılan / Port1 / Remix / Customized (EDID Wizard desteği) Güç Konnektörler 1 x 3-Prong AC Soket Maksimum Giriş Gücü Oranı 100-240 VAC; 50-60 Hz; 1.0A Tüketim 120 VAC, 36.6W; 230 VAC, 37.5W Çevresel Özellikler Çalışma Ortamının Isısı 0-50°C Storage Temperature -20 - 60°C Nem Oranı 0 - 80% RH, Non-Condensing Fiziksel Özellikler Şasi Metal Ağırlık 4.10 kg ( 9.03 lb ) Boyutlar (E x B x Y) 43.24 x 26.23 x 4.40 cm
(17.02 x 10.33 x 1.73 in.)
Ambalaj İçeriği
Ambalaj İçeriği
Görüntü Girişi | |
Arayüz | 4 x DVI-D Dişi (Beyaz Renk) |
Empedans | 100 Ώ |
Maksimum Mesafe | 1.8 m |
Görüntü Çıkışı | |
Arayüz | 4 x DVI-D Dişi (Beyaz Renk) |
Empedans | 100 Ώ |
Görüntü | |
Maksimum Veri Transfer Oranı | 6.75 Gbps (2.25 Gbps Per Lane) |
Maksimum Piksel Clock | 225 MHz |
Uygunluk | HDCP 1.4 |
Maksimum Çözünürlük | 1920 x 1200 |
Maksimum Mesafe | 5 metre |
Yönetim | |
RS-232 |
Konnektör: 1 x DB-9 Dişi (Siyah Renk) Baud Oranı ve Protokol: Baud Oranı: 19200, Data Bit: 8, Stop Bit: 1, Parite: No, Flow Control: No |
Ethernet | 1 x RJ-45 Dişi (Siyah Renk) |
IR | 1 x Mini Stereo Dişi Yuva (Siyah Renk) |
EDID Ayarları | EDID Mod: Versayılan / Port 1/ Remix / Geleneksel |
Power | |
Konnektörler | 1 x 3-Prong AC Soket |
I/P Oranı | 100-240VAC; 50-60Hz; 1.0A |
Tüketim | 120VAC, 34.1W; 230VAC, 34.4W |
Çevresel Özellikler | |
Çalışma Ortamının Isısı | 0-50°C |
Depolandığı Alanın Isısı | -20 - 60°C |
Nem Oranı | 0 - 80% RH, Non-Condensing |
Fiziksel Özellikler | |
Şasi | Metal |
Ağırlık | 3.50kg |
Boyutlar (E x B x Y) | 43.24 x 25.98 x 4.40 cm |
Ekran Girişi | |
Arayüzler | 8 x HDMI Tip A Dişi (Siyah Renk) |
Empedans | 100 Ώ |
Maksimum Mesafe | 1.8 m |
Ekran Çıkışı | |
Arayüzler | 8 x HDMI Tip A Dişi (Siyah Renk) |
Empedans | 100 Ώ |
Maksimum Mesafe | 15 m |
Görüntü | |
Maksimum Veri Hızı | 6.75 Gbps (2.25 Gbps Per Lane) |
Maksimum Pixel Clock | 225 MHz |
Uygunluk |
HDMI (3D, Deep Color) HDCP 1.4 Consumer Electronics Control (CEC) |
Maksimum Çözünürlük | 1080p |
Maksimum Mesafe | 15 m |
Yönetim | |
RS-232 |
Konnektör: 1 x DB-9 Dişi (Siyah Renk) Baud rate ve protokol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
IR | 1 x Mini Stereo Jack Dişi (Siyah Renk) |
EDID Ayarları | EDID Mod: Varsayılan / Port1 / Remix / Customized (EDID Wizard desteği) |
Güç | |
Konnektörler | 1 x 3-Prong AC Soket |
Maksimum Giriş Gücü Oranı | 100-240 VAC; 50-60 Hz; 1.0A |
Tüketim | 120 VAC, 60W; 230 VAC, 62W |
Çevresel Özellikler | |
Çalışma Ortamının Isısı | 0-50°C |
Depolandığı Alanın Isısı | -20 - 60°C |
Nem Oranı | 0 - 80% RH, Non-Condensing |
Fiziksel Özellikler | |
Şasi | Metal |
Ağırlık | 4.03 kg ( 8.88 lb ) |
Boyutlar (E x B x Y) |
43.24 x 26.23 x 4.40 cm (17.02 x 10.33 x 1.73 in.) |
[private_notes] => [public_notes] => [public_web_notes] => [sold] => 1 [sold_thru_internet] => 1 [visible] => 3 [promote] => [ask_price] => 1 [ask_price_partner] => 1 [deponet_sold] => [deponet_sold_thru_internet] => [deponet_visible] => 0 [deponet_promote] => [deponet_ask_price] => [beek_sold] => [beek_sold_thru_internet] => [beek_visible] => 0 [beek_promote] => [beek_ask_price] => [tiger_item_id] => 33214 [tiger_item_alt1_id] => [tiger_item_alt2_id] => [tiger_item_alt3_id] => [bimelistanbul_item_id] => [bimelistanbul_item_alt1_id] => [bimelistanbul_item_alt2_id] => [bimelistanbul_item_alt3_id] => [deponet_item_id] => 7241 [deponet_item_alt1_id] => [deponet_item_alt2_id] => [deponet_item_alt3_id] => [ean] => 4719264640452 [product_warranty_card_id] => [batch_quantity] => [created] => 2016-04-13 13:04:25 [created_by] => 74 [modified] => 2025-04-10 16:36:32 [modified_by] => 74 [keywords] => [TigerItem] => [reserved_stock] => 0 [bimel_ankara_reserve] => [bimel_istanbul_network_reserve] => [bimel_bursa_reserve] => [bimel_ariza_reserve] => [Reserves] => Array ( ) [deponet_ankara_reserve] => [deponet_istanbul_reserve] => [unit_set] => ADET [status] => not_sold_thru_internet [ProductImage] => Array ( [0] => Array ( [id] => 10654 [product_id] => 8388 [name] => ATEN-VM5808H [description] => [uploaded_file_id] => 11625 [default_image] => 1 [created] => 2016-04-13 13:06:03 [created_by] => 74 [modified] => 2016-04-13 13:06:03 [modified_by] => ) [1] => Array ( [id] => 10655 [product_id] => 8388 [name] => ATEN-VM5808H [description] => [uploaded_file_id] => 11626 [default_image] => [created] => 2016-04-13 13:06:10 [created_by] => 74 [modified] => 2016-04-13 13:06:10 [modified_by] => ) [2] => Array ( [id] => 10656 [product_id] => 8388 [name] => ATEN-VM5808H [description] => [uploaded_file_id] => 11627 [default_image] => [created] => 2016-04-13 13:06:17 [created_by] => 74 [modified] => 2016-04-13 13:06:17 [modified_by] => ) [3] => Array ( [id] => 10657 [product_id] => 8388 [name] => ATEN-VM5808H_diagram [description] => [uploaded_file_id] => 11628 [default_image] => [created] => 2016-04-13 13:06:27 [created_by] => 74 [modified] => 2016-04-13 13:06:27 [modified_by] => ) ) [ProductCategory] => Array ( [0] => Array ( [id] => 849 [name] => Digital Signage [slug] => digital_signage [description] => [sold_by_bimel] => [parent_id] => 58 [lft] => 1657 [rght] => 1658 [created] => 2013-06-07 15:50:29 [created_by] => 74 [modified] => 2015-09-09 17:13:14 [modified_by] => [ProductProductCategory] => Array ( [id] => 172554 [product_id] => 8388 [product_category_id] => 849 ) ) [1] => Array ( [id] => 630 [name] => HDMI Matrix Switch [slug] => hdmi_matrix_switch [description] => [sold_by_bimel] => [parent_id] => 475 [lft] => 878 [rght] => 879 [created] => 2011-08-17 11:30:14 [created_by] => 7 [modified] => 2015-09-09 17:13:14 [modified_by] => [ProductProductCategory] => Array ( [id] => 172553 [product_id] => 8388 [product_category_id] => 630 ) ) [2] => Array ( [id] => 1033 [name] => 8'li [slug] => 8_li [description] => [sold_by_bimel] => [parent_id] => 107 [lft] => 856 [rght] => 857 [created] => 2016-03-18 15:52:09 [created_by] => 7 [modified] => 2016-03-18 15:52:09 [modified_by] => [ProductProductCategory] => Array ( [id] => 172552 [product_id] => 8388 [product_category_id] => 1033 ) ) [3] => Array ( [id] => 1029 [name] => 8'li HDMI Çoklayıcı [slug] => 8_li_4 [description] => [sold_by_bimel] => [parent_id] => 156 [lft] => 114 [rght] => 115 [created] => 2016-03-18 14:28:22 [created_by] => 7 [modified] => 2020-01-24 12:40:32 [modified_by] => 7 [ProductProductCategory] => Array ( [id] => 172551 [product_id] => 8388 [product_category_id] => 1029 ) ) ) ) ) [4] => Array ( [id] => 2519 [product_relation_type_id] => 3 [product_id] => 12678 [related_product_id] => 8389 [description] => [created] => 2023-09-27 22:37:33 [created_by] => 5 [modified] => 2023-09-27 22:37:33 [modified_by] => 5 [ProductRelationType] => Array ( [id] => 3 [name] => Uyumlu [description] => Beraber çalışabilecek ürünler. [created] => 2008-05-27 11:04:21 [created_by] => 1 [modified] => 2008-05-27 11:04:21 [modified_by] => ) [RelatedProduct] => Array ( [id] => 8389 [producer_id] => 3 [name] => ATEN-VM0404 [producer_code] => [slug] => aten-vm0404 [short_description] => VGA Video Matrix Switch, 4 Giriş, 4 Çıkış, Hoparlör bağlanabilir
Ekran Girişi | |
Arayüzler | 4 x HDB-15 Erkek (Mavi Renk) |
Empedans | 75 Ώ |
Maksimum Mesafe | 1.8 m |
Ekran Çıkışı | |
Arayüzler | 4 x HDB-15 Dişi (Mavi Renk) |
Empedans | 75 Ώ |
Maksimum Mesafe | 30 m |
Ekran | |
Maksimum Bantgenişliği |
300 MHz |
Maksimum Çözünürlük |
Maksimum 1920 x 1200 |
Maksimum Mesafe | Maksimum 30 m |
Hoparlör | |
Giriş | 4 x Mini Stereo Yuva Dişi (Yeşil Renk) |
Çıkış | 4 x Mini Stereo Yuva Dişi (Yeşil Renk) |
Kontrol | |
RS-232 |
Konnektör: 1 x DB-9 Dişi (Siyah Renk) Baud hızı ve protokol: Baud Hızı: 19200, Data Bit: 8, Stop Bit:1, Parite: No, Flow Kontrol: No |
IR | 1 x Mini Stereo Yuva Dişi (Siyah Renk) |
EDID Ayarları | EDID Mod: Varsayılan / Port1 / Remiks / Otomatik |
Power | |
Konnektörler | 1 x DC Yuva (Siyah Renk) |
Tüketim | 5.3 VDC, 2.7W |
Çevresel Özellikler | |
Çalışma Ortamının Isısı | 0-50°C |
Depolandığı Alanın Isısı | -20 - 60°C |
Nem Oranı | 0 - 80% RH, Non-Condensing |
Fiziksel Özellikler | |
Şasi | Metal |
Ağırlık | 0.87 kg ( 1.92 lb ) |
Boyutlar (E x B x Y) |
26.00 x 7.61 x 4.40 cm (10.24 x 3 x 1.73 in.) |
[private_notes] => [public_notes] => [public_web_notes] => [sold] => [sold_thru_internet] => [visible] => 0 [promote] => [ask_price] => [ask_price_partner] => 1 [deponet_sold] => [deponet_sold_thru_internet] => [deponet_visible] => 0 [deponet_promote] => [deponet_ask_price] => [beek_sold] => [beek_sold_thru_internet] => [beek_visible] => 0 [beek_promote] => [beek_ask_price] => [tiger_item_id] => 32077 [tiger_item_alt1_id] => [tiger_item_alt2_id] => [tiger_item_alt3_id] => [bimelistanbul_item_id] => [bimelistanbul_item_alt1_id] => [bimelistanbul_item_alt2_id] => [bimelistanbul_item_alt3_id] => [deponet_item_id] => [deponet_item_alt1_id] => [deponet_item_alt2_id] => [deponet_item_alt3_id] => [ean] => 4710423779914 [product_warranty_card_id] => [batch_quantity] => [created] => 2016-04-14 17:33:23 [created_by] => 74 [modified] => 2024-05-20 16:09:03 [modified_by] => 74 [keywords] => [TigerItem] => [reserved_stock] => 0 [bimel_ankara_reserve] => [bimel_istanbul_network_reserve] => [bimel_bursa_reserve] => [bimel_ariza_reserve] => [Reserves] => Array ( ) [deponet_ankara_reserve] => [deponet_istanbul_reserve] => [unit_set] => ADET [status] => not_sold_thru_internet [ProductImage] => Array ( [0] => Array ( [id] => 10664 [product_id] => 8389 [name] => ATEN-VM0404 [description] => [uploaded_file_id] => 11631 [default_image] => 1 [created] => 2016-04-14 17:37:00 [created_by] => 74 [modified] => 2016-04-14 17:37:00 [modified_by] => ) [1] => Array ( [id] => 10665 [product_id] => 8389 [name] => ATEN-VM0404 [description] => [uploaded_file_id] => 11632 [default_image] => [created] => 2016-04-14 17:37:07 [created_by] => 74 [modified] => 2016-04-14 17:37:07 [modified_by] => ) [2] => Array ( [id] => 10666 [product_id] => 8389 [name] => ATEN-VM0404 [description] => [uploaded_file_id] => 11633 [default_image] => [created] => 2016-04-14 17:37:14 [created_by] => 74 [modified] => 2016-04-14 17:37:14 [modified_by] => ) [3] => Array ( [id] => 10667 [product_id] => 8389 [name] => ATEN-VM0404_diagram [description] => [uploaded_file_id] => 11634 [default_image] => [created] => 2016-04-14 17:37:24 [created_by] => 74 [modified] => 2016-04-14 17:37:24 [modified_by] => ) ) [ProductCategory] => Array ( [0] => Array ( [id] => 849 [name] => Digital Signage [slug] => digital_signage [description] => [sold_by_bimel] => [parent_id] => 58 [lft] => 1657 [rght] => 1658 [created] => 2013-06-07 15:50:29 [created_by] => 74 [modified] => 2015-09-09 17:13:14 [modified_by] => [ProductProductCategory] => Array ( [id] => 165941 [product_id] => 8389 [product_category_id] => 849 ) ) [1] => Array ( [id] => 778 [name] => 4’lü [slug] => 4_lu_2 [description] => [sold_by_bimel] => [parent_id] => 654 [lft] => 890 [rght] => 891 [created] => 2012-08-22 17:12:21 [created_by] => 7 [modified] => 2015-09-09 17:13:14 [modified_by] => [ProductProductCategory] => Array ( [id] => 165940 [product_id] => 8389 [product_category_id] => 778 ) ) [2] => Array ( [id] => 629 [name] => VGA Matrix Switch [slug] => vga_matrix_switch [description] => [sold_by_bimel] => [parent_id] => 475 [lft] => 876 [rght] => 877 [created] => 2011-08-17 11:29:39 [created_by] => 7 [modified] => 2015-09-09 17:13:14 [modified_by] => [ProductProductCategory] => Array ( [id] => 165939 [product_id] => 8389 [product_category_id] => 629 ) ) [3] => Array ( [id] => 844 [name] => 4’lü VGA Çoklayıcı [slug] => 4_lu_vga_video_coklayici [description] => [sold_by_bimel] => [parent_id] => 131 [lft] => 130 [rght] => 131 [created] => 2013-05-14 19:08:24 [created_by] => 7 [modified] => 2020-01-24 12:52:33 [modified_by] => 7 [ProductProductCategory] => Array ( [id] => 165938 [product_id] => 8389 [product_category_id] => 844 ) ) [4] => Array ( [id] => 871 [name] => Kampanyalı Ürünler [slug] => eol_urunler [description] => [sold_by_bimel] => [parent_id] => [lft] => 2839 [rght] => 2840 [created] => 2013-07-25 15:28:39 [created_by] => 74 [modified] => 2020-08-20 14:04:40 [modified_by] => 226 [ProductProductCategory] => Array ( [id] => 165942 [product_id] => 8389 [product_category_id] => 871 ) ) ) ) ) [5] => Array ( [id] => 2520 [product_relation_type_id] => 3 [product_id] => 12678 [related_product_id] => 9149 [description] => [created] => 2023-09-27 22:37:33 [created_by] => 5 [modified] => 2023-09-27 22:37:33 [modified_by] => 5 [ProductRelationType] => Array ( [id] => 3 [name] => Uyumlu [description] => Beraber çalışabilecek ürünler. [created] => 2008-05-27 11:04:21 [created_by] => 1 [modified] => 2008-05-27 11:04:21 [modified_by] => ) [RelatedProduct] => Array ( [id] => 9149 [producer_id] => 3 [name] => ATEN-VM0404HA [producer_code] => [slug] => aten-vm0404ha [short_description] => 4K HDMI Video Matrix Switch, 4 Giriş (HDMI Arayüzlü Kaynak Cihaz), 4 Çıkış (HDMI Arayüzlü Görüntü Aygıtı), Infrared Uzaktan Kumanda Cihazı ile birlikte [long_description] =>
Ekran Girişi |
|
Arayüzler | 4 x HDMI Tip A Dişi (Siyah Renk) |
Empedans | 100 Ώ |
Maksimum Mesafe | 1.8 m |
Ekran Çıkışı | |
Arayüz | 4 x HDMI Tip A Dişi (Siyah Renk) |
Empedans | 100 Ώ |
Maksimum Mesafe | 15 m |
Ekran | |
Maksimum Veri Oranı | 10.2 Gbps (3.4 Gbps Per Lane) |
Maksimum Piksel Saat | 340 MHz |
Uygunluk |
HDMI (3D, 4K, Renk Derinliği) HDCP 1.4 Uyumlu Consumer Electronics Control (CEC) |
Maksimum Çözünürlük |
Maksimum 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
Maksimum Mesafe | Maksimum 15 metre |
Yönetim | |
RS-232 |
Konnektör: 1 x DB-9 Dişi (Siyah Renk) Baud oranı ve protokolü: Baud Rate: 19200, Data Bit: 8, Stop Bits:1, Parity: No, Flow Control: No |
USB |
1 x Micro USB Firmware güncelleme |
IR | 1 x Mini Stereo Erkek Dişi (Siyah Renk) |
EDID Ayarları | EDID Mod: Varsayılan/ Port1 / Remix |
Güç | |
Konnektörler | 1 x DC Jack (Siyah Renk) |
Tüketim | 5 VDC, 10.58W |
Çevresel Özellikler | |
Çalışma Ortamının Isısı | 0-40°C |
Depolandığı Alanın Isısı | -20 - 60°C |
Nem Oranı | 0 - 80% RH, Non-Condensing |
Fiziksel Özellikler | |
Şasi | Metal |
Ağırlık | 2.02 kg ( 4.45 lb ) |
Boyutlar (E x B x Y) |
43.72 x 16.29 x 4.40 cm (17.21 x 6.41 x 1.73 in.) |
[private_notes] => [public_notes] => [public_web_notes] => [sold] => 1 [sold_thru_internet] => 1 [visible] => 3 [promote] => [ask_price] => [ask_price_partner] => [deponet_sold] => [deponet_sold_thru_internet] => [deponet_visible] => 0 [deponet_promote] => [deponet_ask_price] => [beek_sold] => [beek_sold_thru_internet] => [beek_visible] => 0 [beek_promote] => [beek_ask_price] => [tiger_item_id] => 35599 [tiger_item_alt1_id] => [tiger_item_alt2_id] => [tiger_item_alt3_id] => [bimelistanbul_item_id] => 7936 [bimelistanbul_item_alt1_id] => [bimelistanbul_item_alt2_id] => [bimelistanbul_item_alt3_id] => [deponet_item_id] => 5698 [deponet_item_alt1_id] => [deponet_item_alt2_id] => [deponet_item_alt3_id] => [ean] => 4719264643873 [product_warranty_card_id] => [batch_quantity] => [created] => 2017-02-28 14:28:17 [created_by] => 7 [modified] => 2020-04-26 18:03:14 [modified_by] => 74 [keywords] => [TigerItem] => [reserved_stock] => 0 [bimel_ankara_reserve] => [bimel_istanbul_network_reserve] => [bimel_bursa_reserve] => [bimel_ariza_reserve] => [Reserves] => Array ( ) [deponet_ankara_reserve] => [deponet_istanbul_reserve] => [unit_set] => ADET [status] => not_sold_thru_internet [ProductImage] => Array ( [0] => Array ( [id] => 12592 [product_id] => 9149 [name] => ATEN-VM0404HA [description] => [uploaded_file_id] => 13519 [default_image] => 1 [created] => 2017-02-28 14:30:03 [created_by] => 7 [modified] => 2017-02-28 14:30:03 [modified_by] => ) [1] => Array ( [id] => 12593 [product_id] => 9149 [name] => ATEN-VM0404HA [description] => Çizim [uploaded_file_id] => 13520 [default_image] => [created] => 2017-02-28 14:30:59 [created_by] => 7 [modified] => 2017-02-28 14:30:59 [modified_by] => ) ) [ProductCategory] => Array ( [0] => Array ( [id] => 849 [name] => Digital Signage [slug] => digital_signage [description] => [sold_by_bimel] => [parent_id] => 58 [lft] => 1657 [rght] => 1658 [created] => 2013-06-07 15:50:29 [created_by] => 74 [modified] => 2015-09-09 17:13:14 [modified_by] => [ProductProductCategory] => Array ( [id] => 127155 [product_id] => 9149 [product_category_id] => 849 ) ) [1] => Array ( [id] => 630 [name] => HDMI Matrix Switch [slug] => hdmi_matrix_switch [description] => [sold_by_bimel] => [parent_id] => 475 [lft] => 878 [rght] => 879 [created] => 2011-08-17 11:30:14 [created_by] => 7 [modified] => 2015-09-09 17:13:14 [modified_by] => [ProductProductCategory] => Array ( [id] => 127154 [product_id] => 9149 [product_category_id] => 630 ) ) [2] => Array ( [id] => 1031 [name] => 4'lü [slug] => 4_lu [description] => [sold_by_bimel] => [parent_id] => 107 [lft] => 852 [rght] => 853 [created] => 2016-03-18 15:51:51 [created_by] => 7 [modified] => 2016-03-18 15:51:51 [modified_by] => [ProductProductCategory] => Array ( [id] => 127153 [product_id] => 9149 [product_category_id] => 1031 ) ) [3] => Array ( [id] => 1028 [name] => 4'lü HDMI Çoklayıcı [slug] => 4_lu_4 [description] => [sold_by_bimel] => [parent_id] => 156 [lft] => 112 [rght] => 113 [created] => 2016-03-18 14:28:12 [created_by] => 7 [modified] => 2020-01-24 12:40:04 [modified_by] => 7 [ProductProductCategory] => Array ( [id] => 127152 [product_id] => 9149 [product_category_id] => 1028 ) ) ) ) ) [6] => Array ( [id] => 2521 [product_relation_type_id] => 3 [product_id] => 12678 [related_product_id] => 5294 [description] => [created] => 2023-09-27 22:37:33 [created_by] => 5 [modified] => 2023-09-27 22:37:33 [modified_by] => 5 [ProductRelationType] => Array ( [id] => 3 [name] => Uyumlu [description] => Beraber çalışabilecek ürünler. [created] => 2008-05-27 11:04:21 [created_by] => 1 [modified] => 2008-05-27 11:04:21 [modified_by] => ) [RelatedProduct] => Array ( [id] => 5294 [producer_id] => 3 [name] => ATEN-VM0404H [producer_code] => [slug] => aten-vm0404h [short_description] => HDMI Video Matrix Switch, 4 Giriş (HDMI Arayüzlü Kaynak Cihaz), 4 Çıkış (HDMI Arayüzlü Görüntü Aygıtı), Infrared Uzaktan Kumanda Cihazı ile birlikte [long_description] =>
ATEN HDMI Çözümleri için Tıklayınız.
Ambalaj İçeriği
Ekran Bağlantıları | Direkt | 4 | |
Maksimum | 64 (kaskad bağlantı yöntemiyle) | ||
HDMI Giriş Bağlantıları | 4 | ||
Konnektörler | Kaynak Cihaz | HDMI Giriş | 4 x HDMI Tip A Dişi (Siyah Renk) |
Ekran | HDMI Çıkış | 4 x HDMI Tip A Dişi (Siyah Renk) | |
RS-232 Port | 1 x DB-9 Dişi (Siyah Renk) | ||
Güç | 1 x DC Jack | ||
Cihaz Seçimi/Geçişler | Port Seçimi | 4 x Basılabilir Düğme | |
LED Işıkları | Seçili | 16 (Yeşil Renk) | |
Monitör Çözünürlüğü |
HDTV çözünürlük değeri maksimum 1080p; bilgisayar monitör çözünürlüğü maksimum WUXGA standardında 1920x1200 değerinde |
||
Güç Tüketimi | DC5.3V, 9W (Maksimum) | ||
Çevresel Özellikler | Çalışma Sıcaklığı | 0-50°C | |
Depolandığı Alanın Isısı | -20-60°C | ||
Nem Oranı | 0-80% RH, Non-condensing | ||
Fiziksel Özellikler | Şasi | Metal | |
Ağırlık | 1.86 kg | ||
Boyutlar (E x B x Y ) |
43.20 x 15.40 x 4.40 cm |
Kablo seçenekleri:
http://www.bimel.com.tr/urunler/bilgisayar_yan_urunleri/kablo_2/monitor_dvi_hdmi_vga_kablolari/highspeed_hdmi_hdmi_1_3
ATEN HDMI Çözümleri için Tıklayınız.
Ambalaj İçeriği
Ekran Bağlantıları | HDMI Giriş Bağlantıları | 8 x HDMI Tip A Dişi (Siyah Renk) |
HDMI Çıkış Bağlantıları | 8 x HDMI Tip A Dişi (Siyah Renk) | |
Ethernet | 1 x RJ-45 Dişi | |
RS-232 | 1 x DB-9 Dişi (Siyah Renk) | |
IR Giriş Port | 1 x Mini Stereo Jack Dişi (Siyah Renk) | |
Güç | 1 x 3-prong AC Soket | |
Switch'ler | Giriş | 1 x Tuner Buton |
Çıkış | 1 x Tuner Buton | |
Esc | 1 x Basılabilir Düğme | |
Menü | 1 x Basılabilir Düğme | |
Profil | 1 x Basılabilir Düğme | |
Enter | 1 x Basılabilir Düğme | |
Güç | 1 x Rocker | |
LED Işıkları | Menü | 1 (Yeşil Renk) |
Profil | 1 (Yeşil Renk) | |
I/P Oranı | 100-240VAC ; 50-60Hz;1A | |
Güç Tüketimi | 120V/32W ; 230V/34W | |
Çevresel Özellikler | Çalışma Sıcaklığı | 32 – 122°F |
Depolandığı Alanın Isısı | –4 – 140°F | |
Nem Oranı | 0-80% RH, Non-condensing | |
Fiziksel Özellikler | Şasi | Metal |
Ağırlık | 8.84 lbs | |
Boyutlar (E x B x Y ) | 17.02x 10.68x 1.73 inch |
Kablo seçenekleri:
http://www.bimel.com.tr/urunler/bilgisayar_yan_urunleri/kablo_2/monitor_dvi_hdmi_vga_kablolari/highspeed_hdmi_hdmi_1_3
[private_notes] => [public_notes] => [public_web_notes] => [sold] => [sold_thru_internet] => [visible] => 0 [promote] => [ask_price] => [ask_price_partner] => 1 [deponet_sold] => [deponet_sold_thru_internet] => [deponet_visible] => 0 [deponet_promote] => [deponet_ask_price] => [beek_sold] => [beek_sold_thru_internet] => [beek_visible] => 0 [beek_promote] => [beek_ask_price] => [tiger_item_id] => 29086 [tiger_item_alt1_id] => [tiger_item_alt2_id] => [tiger_item_alt3_id] => [bimelistanbul_item_id] => 7053 [bimelistanbul_item_alt1_id] => [bimelistanbul_item_alt2_id] => [bimelistanbul_item_alt3_id] => [deponet_item_id] => [deponet_item_alt1_id] => [deponet_item_alt2_id] => [deponet_item_alt3_id] => [ean] => 4710423777873 [product_warranty_card_id] => [batch_quantity] => [created] => 2014-06-16 17:49:13 [created_by] => 74 [modified] => 2017-05-24 01:42:38 [modified_by] => 7 [keywords] => [TigerItem] => [reserved_stock] => 0 [bimel_ankara_reserve] => [bimel_istanbul_network_reserve] => [bimel_bursa_reserve] => [bimel_ariza_reserve] => [Reserves] => Array ( ) [deponet_ankara_reserve] => [deponet_istanbul_reserve] => [unit_set] => ADET [status] => not_sold_thru_internet [ProductImage] => Array ( [0] => Array ( [id] => 8512 [product_id] => 7336 [name] => ATEN-VM0808H [description] => [uploaded_file_id] => 9520 [default_image] => 1 [created] => 2014-06-16 17:56:05 [created_by] => 74 [modified] => 2014-06-16 17:56:05 [modified_by] => ) [1] => Array ( [id] => 8513 [product_id] => 7336 [name] => ATEN-VM0808H [description] => [uploaded_file_id] => 9521 [default_image] => [created] => 2014-06-16 17:56:22 [created_by] => 74 [modified] => 2014-06-16 17:56:22 [modified_by] => ) [2] => Array ( [id] => 8514 [product_id] => 7336 [name] => ATEN-VM0808H [description] => [uploaded_file_id] => 9522 [default_image] => [created] => 2014-06-16 17:56:33 [created_by] => 74 [modified] => 2014-06-16 17:56:33 [modified_by] => ) [3] => Array ( [id] => 8515 [product_id] => 7336 [name] => ATEN-VM0808H_diagram [description] => [uploaded_file_id] => 9523 [default_image] => [created] => 2014-06-16 17:56:46 [created_by] => 74 [modified] => 2014-06-16 17:56:46 [modified_by] => ) ) [ProductCategory] => Array ( [0] => Array ( [id] => 1029 [name] => 8'li HDMI Çoklayıcı [slug] => 8_li_4 [description] => [sold_by_bimel] => [parent_id] => 156 [lft] => 114 [rght] => 115 [created] => 2016-03-18 14:28:22 [created_by] => 7 [modified] => 2020-01-24 12:40:32 [modified_by] => 7 [ProductProductCategory] => Array ( [id] => 82664 [product_id] => 7336 [product_category_id] => 1029 ) ) [1] => Array ( [id] => 630 [name] => HDMI Matrix Switch [slug] => hdmi_matrix_switch [description] => [sold_by_bimel] => [parent_id] => 475 [lft] => 878 [rght] => 879 [created] => 2011-08-17 11:30:14 [created_by] => 7 [modified] => 2015-09-09 17:13:14 [modified_by] => [ProductProductCategory] => Array ( [id] => 82663 [product_id] => 7336 [product_category_id] => 630 ) ) [2] => Array ( [id] => 1033 [name] => 8'li [slug] => 8_li [description] => [sold_by_bimel] => [parent_id] => 107 [lft] => 856 [rght] => 857 [created] => 2016-03-18 15:52:09 [created_by] => 7 [modified] => 2016-03-18 15:52:09 [modified_by] => [ProductProductCategory] => Array ( [id] => 82662 [product_id] => 7336 [product_category_id] => 1033 ) ) [3] => Array ( [id] => 849 [name] => Digital Signage [slug] => digital_signage [description] => [sold_by_bimel] => [parent_id] => 58 [lft] => 1657 [rght] => 1658 [created] => 2013-06-07 15:50:29 [created_by] => 74 [modified] => 2015-09-09 17:13:14 [modified_by] => [ProductProductCategory] => Array ( [id] => 82661 [product_id] => 7336 [product_category_id] => 849 ) ) ) ) ) [8] => Array ( [id] => 2523 [product_relation_type_id] => 3 [product_id] => 12678 [related_product_id] => 8362 [description] => [created] => 2023-09-27 22:37:33 [created_by] => 5 [modified] => 2023-09-27 22:37:33 [modified_by] => 5 [ProductRelationType] => Array ( [id] => 3 [name] => Uyumlu [description] => Beraber çalışabilecek ürünler. [created] => 2008-05-27 11:04:21 [created_by] => 1 [modified] => 2008-05-27 11:04:21 [modified_by] => ) [RelatedProduct] => Array ( [id] => 8362 [producer_id] => 3 [name] => ATEN-VM1600 [producer_code] => [slug] => aten-vm1600 [short_description] => 16 x 16 Modular Matrix Switch (ATEN-VM1600) + DVI Input/Output Board (ATEN-VM7604/ATEN-VM8604)+ HDMI Input/Output Board (ATEN-VM7804/ATEN-VM8804), HDBaseT Input/Output Board (ATEN-VM7514/ATEN-VM8514), 3G-SDI Input Board (ATEN-VM7404), VGA Input Board (ATEN-VM7104) [long_description] =>
• Önpanel kontrol düğmeleri
• RS-232 seri port
• Tarayıcı tabanlı kullanıcı grafik arayüzü (GUI)
• Telnet
• Fan (ATEN-VM-FAN60)
• Güç (ATEN-VM-PWR400)
Konnektörler | Ethernet | 1 x RJ-45 Dişi |
RS-232 | 1 x DB-9 Dişi (Siyah Renk) | |
RS-485 / RS-422 | 1 x captive vidalı konnektör 5 kutuplu | |
Güç | 1 x 3-prong AC Soket | |
LCD | 1 x LCD Modül | |
Switch'ler | Giriş | 16 x Basılabilir Düğme |
Çıkış | 16 x Basılabilir Düğme | |
Ekran | 1 x Basılabilir Düğme | |
Ses | 1 x Basılabilir Düğme | |
Menü | 1 x Basılabilir Düğme | |
Profil | 1 x Basılabilir Düğme | |
Yukarı (↑) | 1 x Basılabilir Düğme | |
Aşağı (↓) | 1 x Basılabilir Düğme | |
İptal (←) | 1 x Basılabilir Düğme | |
Güç | 1 x Rocker | |
LED Işıkları | Alarm | 1 (Kırmızı Renk) |
Yedek | 1 (Yeşil Renk) | |
Güç | 1 (Yeşil Renk) | |
I/P Oranı | 100-240 VAC; 50-60Hz; 1.0A | |
Güç Tüketimi | 120V,180W; 230V, 172W | |
Çevresel Özellikler | Çalışma Ortamının Isısı | 0 – 40°C |
Depolandığı Alanın Isısı | –20 – 60°C | |
Nem Oranı | 0-80% RH, Non-condensing | |
Fiziksel Özellikler | Şasi | Metal |
Ağırlık | 37.5 lb. (17 kg) (sadece şasi) | |
Boyutlar (E x B x Y) |
19 x 15.9 x 10.1 in. (48.20 x 40.30 x 25.60 cm) |
Board Input | 8 x Slot |
Board Output | 8 x Slot |
Video Input | |
Interfaces | Depends on which I/O board is inserted |
Max. Data Rate | 15.2 Gbps (3.8Gbps per Lane) |
Audio | |
Input | Depends on which Input board is inserted |
Output | Depends on which Output board is inserted |
Control | |
RS-232 |
Connector: 1 x DB-9 Female (Black) Serial Control Pin Configurations: Pin2 = Tx, Pin 3=Rx, Pin 5= Gnd Baud Rate and Protocol: Baud Rate:19200, Data Bits:8, Stop Bits:1, Parity: No, Flow Control: No |
RS-485/RS-422 | Connector: 1 x Captive Screw Connector, 5 Pole |
Ethernet | Connector: 1 x RJ-45 Female |
EDID Settings | EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support) |
Power | |
Connectors | 1 x 3-Prong AC Socket |
Maximum Input Power Rating | 100-240 VAC; 50-60Hz; 1.0A |
Consumption |
800W *A redundant power supply is optional. |
Environmental | |
Operating Temperature | 0 - 40°C |
Storage Temperature | -20 - 60°C |
Humidity | 0 - 80% RH, Non-Condensing |
Physical Properties | |
Housing | Metal |
Dimensions (L x W x H) | 48.20 x 47.19 x 39.90 cm (18.98 x 18.58 x 15.71 in.) |
Weight | 18.20 kg ( 40.09 lb ) |
Carton Lot | 1 pc |
ATEN Wins Two 2017 COMPUTEX Best Choice Awards
[private_notes] => [public_notes] => [public_web_notes] => [sold] => 1 [sold_thru_internet] => [visible] => 3 [promote] => [ask_price] => 1 [ask_price_partner] => 1 [deponet_sold] => [deponet_sold_thru_internet] => [deponet_visible] => 0 [deponet_promote] => [deponet_ask_price] => [beek_sold] => [beek_sold_thru_internet] => [beek_visible] => 0 [beek_promote] => [beek_ask_price] => [tiger_item_id] => 37234 [tiger_item_alt1_id] => [tiger_item_alt2_id] => [tiger_item_alt3_id] => [bimelistanbul_item_id] => [bimelistanbul_item_alt1_id] => [bimelistanbul_item_alt2_id] => [bimelistanbul_item_alt3_id] => [deponet_item_id] => [deponet_item_alt1_id] => [deponet_item_alt2_id] => [deponet_item_alt3_id] => [ean] => 4719264644870 [product_warranty_card_id] => [batch_quantity] => [created] => 2017-02-27 13:35:37 [created_by] => 7 [modified] => 2024-01-25 02:58:05 [modified_by] => 7 [keywords] => [TigerItem] => [reserved_stock] => 0 [bimel_ankara_reserve] => [bimel_istanbul_network_reserve] => [bimel_bursa_reserve] => [bimel_ariza_reserve] => [Reserves] => Array ( ) [deponet_ankara_reserve] => [deponet_istanbul_reserve] => [unit_set] => ADET [status] => not_sold_thru_internet [ProductImage] => Array ( [0] => Array ( [id] => 12590 [product_id] => 9148 [name] => vm3200_1 [description] => [uploaded_file_id] => 13512 [default_image] => 1 [created] => 2017-02-27 13:55:22 [created_by] => 74 [modified] => 2017-02-27 13:55:22 [modified_by] => ) [1] => Array ( [id] => 12591 [product_id] => 9148 [name] => vm3200_1 [description] => [uploaded_file_id] => 13513 [default_image] => [created] => 2017-02-27 13:55:29 [created_by] => 74 [modified] => 2017-02-27 13:55:29 [modified_by] => ) [2] => Array ( [id] => 13173 [product_id] => 9148 [name] => ATEN-VM3200 [description] => [uploaded_file_id] => 14201 [default_image] => [created] => 2017-06-21 17:52:39 [created_by] => 74 [modified] => 2017-06-21 17:52:39 [modified_by] => ) [3] => Array ( [id] => 13349 [product_id] => 9148 [name] => Best Choice Award Logo [description] => ATEN Wins Two 2017 COMPUTEX Best Choice Awards http://www.aten.com/global/en/aten-info/media-center/press-release/3080/ [uploaded_file_id] => 14362 [default_image] => [created] => 2017-07-18 16:41:54 [created_by] => 7 [modified] => 2017-07-18 16:41:54 [modified_by] => ) ) [ProductCategory] => Array ( [0] => Array ( [id] => 849 [name] => Digital Signage [slug] => digital_signage [description] => [sold_by_bimel] => [parent_id] => 58 [lft] => 1657 [rght] => 1658 [created] => 2013-06-07 15:50:29 [created_by] => 74 [modified] => 2015-09-09 17:13:14 [modified_by] => [ProductProductCategory] => Array ( [id] => 162676 [product_id] => 9148 [product_category_id] => 849 ) ) [1] => Array ( [id] => 629 [name] => VGA Matrix Switch [slug] => vga_matrix_switch [description] => [sold_by_bimel] => [parent_id] => 475 [lft] => 876 [rght] => 877 [created] => 2011-08-17 11:29:39 [created_by] => 7 [modified] => 2015-09-09 17:13:14 [modified_by] => [ProductProductCategory] => Array ( [id] => 162675 [product_id] => 9148 [product_category_id] => 629 ) ) [2] => Array ( [id] => 630 [name] => HDMI Matrix Switch [slug] => hdmi_matrix_switch [description] => [sold_by_bimel] => [parent_id] => 475 [lft] => 878 [rght] => 879 [created] => 2011-08-17 11:30:14 [created_by] => 7 [modified] => 2015-09-09 17:13:14 [modified_by] => [ProductProductCategory] => Array ( [id] => 162674 [product_id] => 9148 [product_category_id] => 630 ) ) [3] => Array ( [id] => 631 [name] => DVI Matrix Switch [slug] => dvi_matrix_switch [description] => [sold_by_bimel] => [parent_id] => 475 [lft] => 880 [rght] => 881 [created] => 2011-08-17 11:34:47 [created_by] => 7 [modified] => 2015-09-09 17:13:14 [modified_by] => [ProductProductCategory] => Array ( [id] => 162673 [product_id] => 9148 [product_category_id] => 631 ) ) [4] => Array ( [id] => 1440 [name] => DP Matrix Switch [slug] => dp_matrix_switch [description] => [sold_by_bimel] => [parent_id] => 475 [lft] => 882 [rght] => 883 [created] => 2017-05-31 15:34:35 [created_by] => 74 [modified] => 2017-05-31 15:34:35 [modified_by] => [ProductProductCategory] => Array ( [id] => 162672 [product_id] => 9148 [product_category_id] => 1440 ) ) [5] => Array ( [id] => 1446 [name] => 32'li VGA Çoklayıcı [slug] => 32_li_vga_coklayici [description] => [sold_by_bimel] => [parent_id] => 131 [lft] => 134 [rght] => 135 [created] => 2017-06-06 13:14:54 [created_by] => 7 [modified] => 2017-06-06 13:14:54 [modified_by] => [ProductProductCategory] => Array ( [id] => 162671 [product_id] => 9148 [product_category_id] => 1446 ) ) [6] => Array ( [id] => 1445 [name] => 32'li HDMI Çoklayıcı [slug] => 32_li_coklayici [description] => [sold_by_bimel] => [parent_id] => 156 [lft] => 118 [rght] => 119 [created] => 2017-06-06 13:14:27 [created_by] => 7 [modified] => 2020-01-24 12:40:19 [modified_by] => 7 [ProductProductCategory] => Array ( [id] => 162670 [product_id] => 9148 [product_category_id] => 1445 ) ) [7] => Array ( [id] => 1447 [name] => 32'li DVI Çoklayıcı [slug] => 32_li_dvi_coklayici [description] => [sold_by_bimel] => [parent_id] => 155 [lft] => 104 [rght] => 105 [created] => 2017-06-06 13:15:32 [created_by] => 7 [modified] => 2017-06-06 13:15:32 [modified_by] => [ProductProductCategory] => Array ( [id] => 162669 [product_id] => 9148 [product_category_id] => 1447 ) ) ) ) ) )
