ATEN-CS19208
8-Port USB 3.0 4K DisplayPort KVM Switch
Bu Ürünün Yer Aldığı Kategori(ler)
-
One USB console controls up to eight DisplayPort interface computers and two additional USB 3.0 peripheral devices
-
Cascadable to two levels – controls up to 128 computers1
-
Multi-Display feature – stack up to eight CS19208 units and display video from up to 8 monitors (dual display / triple display / quad display / multi-display)
-
Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
-
EDID Expert™ – selects optimum EDID mode for smooth power-up and highest quality display
-
Supports a DisplayPort or HDMI video output – allows you to choose an appropriate video output and deploy console with flexibility
-
Superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz)
-

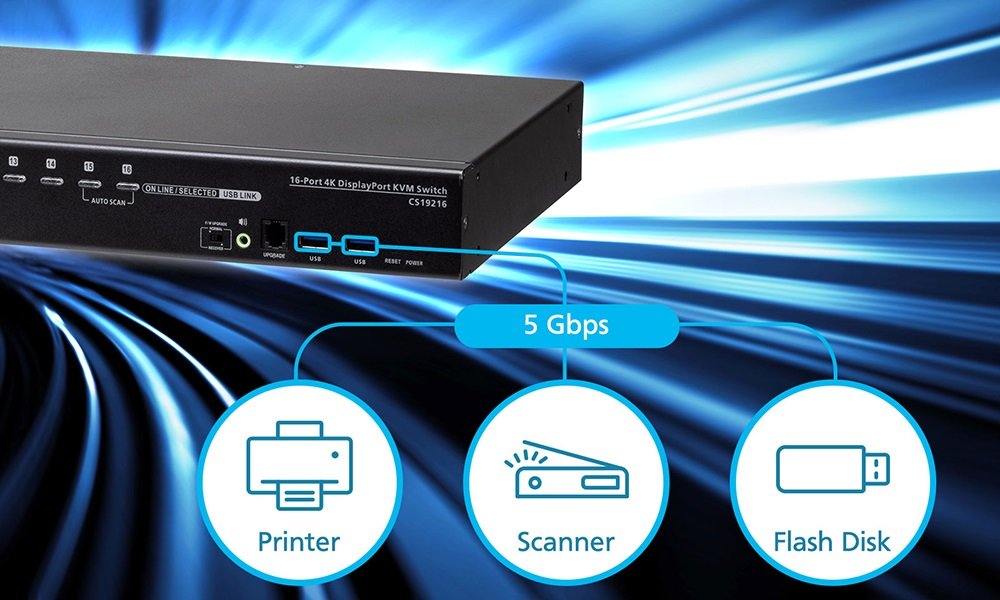

Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
-
Audio enabled – full bass response provides a rich experience for 2.1 channel stereo sound
-
Supports HD audio2
-
Computer selection via pushbuttons, hotkeys, OSD, and RS-232 commands
-
Independent switching of KVM and USB peripheral focus3
-
Two-level (administrator/user) password authorization for enhanced security protection
-
Broadcast mode – operations can be simultaneously performed on all selected computers, such as software installation and upgrading, system-wide shutdown, etc.
-
Auto Scan Mode for monitoring all computers
-
Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
-
Multilingual keyboard mapping – supports English (US), English (UK), German (GER.), German (SWISS), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese, and Simplified Chinese
-
Mac/Sun keyboard support and emulation4
-
Supports hot-plugging
-
DisplayPort 1.2 compliant; HDCP 2.2 compliant
-
Multiplatform support – Windows, Linux, Mac, and Sun
-
Firmware upgradable
-
Supports multimedia, wireless keyboards and mouse
Note:
1. Cascading between CS19208 and CS19216 is available.
2. HD audio through HDMI and DisplayPort channel cannot be switched independently.
3. Independent switching is only supported under mouse emulation mode.
4. PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboards work only with their own computers.
