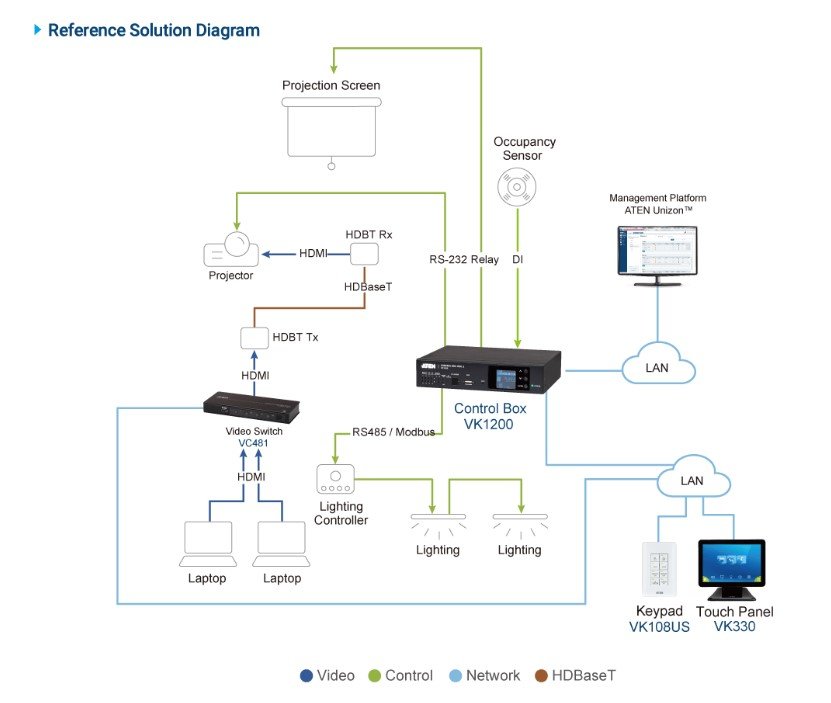

Memory |
|
SDRAM |
1GB |
|
Flash |
8GB |
|
Interfaces |
|
Serial |
• 1 x Programmable Bi-directional RS-232/422/485 Port
(1 x 5-Pole Terminal Block Connector, configurable via pin assignments);
– Baud Rate: 300 to 115200 (default: 9600);
– Data Bit: 8 (default) or 7;
– Stop Bit: 1 (default) or 2;
– Parity: None (default), Even or Odd;
– Flow Control: None (default) or RTS/CTS
• 1 x Bi-directional RS-232 Port
(1 x 3-Pole Terminal Block Connector);
– Baud Rate: 300 to 115200 (default: 9600);
– Data Bit: 8 (default) or 7;
– Stop Bit: 1 (default) or 2;
– Parity: None (default), Even or Odd |
|
IR/Serial |
• 2 x Programmable IR / Uni-directional RS-232 Port
(2 x 2-Pole Terminal Block Connector);
IR: TTL level (0 to 5 V)
– Carrier Frequency: 10KHz~455KHz;
Serial: Uni-directional RS-232 (0 to 5 V)
– Baud Rate: 300 to 115200 (default: 9600);
– Data Bit: 8 (default) or 7;
– Stop Bit: 1 (default) or 2;
– Parity: None (default), Even or Odd |
|
Relay |
• 4 x Relay Channel (2 x 4-Pole Terminal Block Connector);
• Normally open, isolated Relays;
• Contact Rating: Max 24 VDC, 2A |
|
I/O |
• 2 x Programmable Digital Input / Output Channel
(1 x 3-Pole Terminal Block Connector);
Digital Output:
300 mA sink from 24 VDC
Digital Input:
– VDC Mode
Input Voltage Range: 0 to 24 VDC;
Programmable Range: 1 to 24 VDC;
– Dry Contact Mode
Pull-up 2k ohms to + 12 VDC |
|
Ethernet |
• 2 x RJ-45 Female, 10/100/1000Base-T
• Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH
Control LAN:
• Support DHCP Server
• DHCP mode - The following default IP settings will be used if no IP is assigned within 30 seconds:
IP: 192.168.0.60
Subnet Mask: 255.255.255.0
LAN:
• DHCP mode - The following default IP settings will be used if no IP is assigned within 30 seconds:
IP: 192.168.1.60
Subnet Mask: 255.255.255.0 |
|
VDC |
• 1 x 12 VDC Output Port (1 x 2-Pole Terminal Block Connector);
• Power Supply: 12 VDC, 1A Max |
|
USB |
1 x USB Type A |
|
Switches |
|
Power |
1 x On/Off Switch |
|
IR Learning |
1 x IR Receiver LED |
|
Panel Spec |
|
Size |
1.6" |
|
Resolution |
128X64 |
|
Pushbuttons |
|
Select |
3 x Pushbuttons (Up, Down, Enter) |
|
Reset Button |
1 x Semi-recessed Pushbutton |
|
Power Consumption |
AC110V:4.7W:81BTU/h
AC220V:4.5W:81BTU/h
Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
|
Power |
|
Maximum Input Power Rating |
Internal Power: 100-240 VAC, 50-60 Hz |
|
Environmental |
|
Operating Temperature |
0 – 50°C |
|
Storage Temperature |
–20 – 60°C |
|
Humidity |
0 - 80% RH, Non-Condensing |
|
Physical Properties |
|
Housing |
Metal |
|
Weight |
1.23 kg ( 2.71 lb ) |
|
Dimensions (L x W x H) |
20.00 x 16.41 x 4.40 cm
(7.87 x 6.46 x 1.73 in.) |
|
License |
|
Basic (free) |
2 free licenses |
|
Max. No. Allowed |
32 licenses |
