ATEN-CS1844

4-Port USB 3.0 4K HDMI Dual Display KVMP™ Switch

EAN: 4710469340048
Bu Ürünün Yer Aldığı Kategori(ler)

İlginizi Çekebilir

ATEN-CS1642A

ATEN-CS1732B

ATEN-CS1782A

ATEN-CS1792

ATEN-CS1822

ATEN-CS1842

ATEN-CS1844

ATEN-CS1912

ATEN-CS1922M

ATEN-CS1942

ATEN-CS1942DP

ATEN-CS22D

ATEN-CS22DP

ATEN-CS22H

ATEN-CS22U

ATEN-CS682

ATEN-CS82U

ATEN-US3312

DS-12850

DS-12870

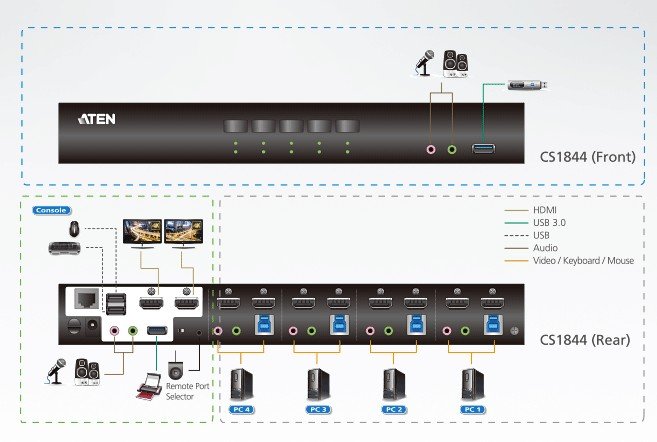

  • One USB keyboard, mouse and two HDMI monitors control four HDMI computers and share two USB peripherals
  • Supports Quad Display by connecting two Dual Display KVM switches
  • Video DynaSync™ – an exclusive ATEN technology that optimizes display resolution, speeds up switching between systems, and ensures that windows opened on an extended desktop will not revert to their default configurations on the main display when switching between ports
  • Supports superior video quality – 4K UHD (3840 x 2160 @ 60Hz) and 4K DCI (4096 x 2160 @ 60Hz)
  • Computer selection via pushbuttons, hotkeys, mouse1, remote port selector, and RS-232 commands2
  • Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
  • Supports console keyboard emulation / bypass feature
  • Supports console mouse emulation / bypass feature
  • Independent switching of KVM, USB peripheral, and stereo audio focus3
  • Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards
  • HDMI 2.0 compliant; HDCP 2.2 compliant
  • Supports HD audio3
  • Power on detection
  • Auto Scan Mode for monitoring all computers
  • Firmware upgradable

    Note:
    1. Mouse port switching is only supported under mouse emulation mode and by USB 3-key wheel mice.
    2. Slide the DCC switch to the s position to allow the KVM switch to receive RS-232 commands via an RJ-45-to-DB-9 cable. Please refer to the CS1842/CS1844 user manual.
    3. HD audio through HDMI channel cannot be switched independently.
