• 8” touch panel with narrow bezel modern design
  • Natively installed with ATEN Control System app and designed for the integrated use with ATEN Control System
  • Supports AppSwitcher to allow multiple apps to be switched and operated
  • Integrated with ATEN Unizon and ATEN Room Booking system to display room usage and operating status
  • Allows administrators for central control of multiple rooms via profiles
  • Restricts user access to profiles via password authentication
  • Synchronization of system control among multiple ATEN Touch Panels, mobile devices, and tablet computers
  • Demo mode enables demonstration without connecting a controller while familiarizing users with the solution’s most important functions
  • Screen Saver helps energy saving and prolongs the device lifetime
  • Allows for Display Real-time Streaming Protocol (RTSP), ONVIF, and ATEN VE89 series video preview*
  • Supports Power over Ethernet (PoE), which allows it to receive power and data over a single Ethernet cable
  • Side power LED – features the indicator in the dark place
  • In-wall design – perfectly fits in building decoration

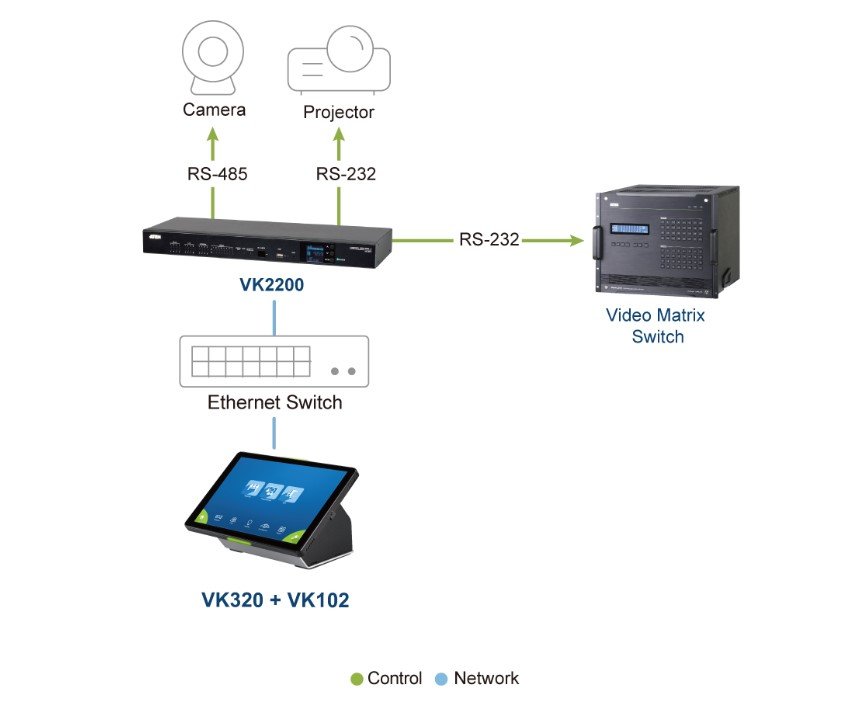

  • Integrated with VK102 for desktop usage

    *Note: The function is applicable to VK2200 / VK1200.



Processor Quad-core
Memory
SDRAM 2GB
Flash 32GB
Panel Spec
Display Type IPS-LCD
Size 8"
Touch Screen Capacitive
Resolution 1280 x 800
Aspect Ratio 16 : 10
Color Depth 8 bit
Contrast Ratio 800 : 1
Backlight LCD
Viewing Angle ± 85° (H), ± 85° (V)
Luminance 300 cd/m²
Interfaces
Ethernet 1 x RJ-45 Female, 10 / 100 BaseT
USB 1 x USB Type C
Power Inputs
Power over Ethernet (PoE) 802.3 at PoE+
Power Consumption DC12V:12W:40.95BTU/h
POE:14.1W:48.1BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0 – 40°C
Storage Temperature –10 – 55°C
Humidity 10 - 75% RH, Non-Condensing
Physical Properties
Housing Plastic
Weight 0.33 kg ( 0.73 lb )
Dimensions (L x W x H) 20.01 x 12.46 x 3.77 cm
(7.88 x 4.91 x 1.48 in.)



Package Contents

  • 1x VK320 8“ Touch Panel
  • 1x 86-type junction box with screws
  • 1x 90° RJ-45 cable adapter
  • 1x user instructions
