ATEN-KL1508AMT

8-Port Cat 5 High-Density Dual Rail LCD KVM Switch

EAN: 4719264642579
Bu Ürünün Yer Aldığı Kategori(ler)

İlginizi Çekebilir

ATEN-CL1308NA

ATEN-CL3108NXA

ATEN-CL5708INT

ATEN-CL5708MA

ATEN-CL5708MWT

ATEN-CL5708NT

ATEN-CL5808NT

ATEN-CS1316

ATEN-CS1708I

ATEN-CS1768

ATEN-CS1788

ATEN-CS1798

ATEN-CS19208

ATEN-KH1508A

ATEN-KH1508AI

ATEN-KH2508A

ATEN-KL1508AIM

ATEN-KL1508AMT

DS-23200

PL-KVM-210-08M

  • Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • KVM console with 17" LED-backlit LCD monitor in a sliding housing with top and bottom clearance for smooth operation in a 1U high rack
  • Dual Rail operation - LCD monitor slides independently of the keyboard/touchpad
  • LCD module rotates up to 120 degrees for a more comfortable viewing angle
  • Console lock enables the sliding console to remain securely locked away when not in use

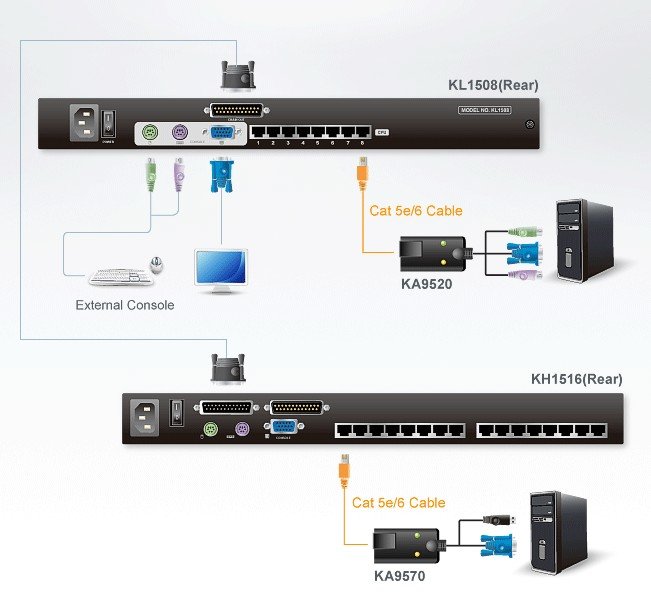

  • A single console controls up to 8 computers - daisy chain up to 31 additional units to control up to 256 computers
  • KVM adapter cables with automatic conversion allow flexible interface combinations. PCs, Macs, Sun computers, and serial devices can all coexist on the installation.
  • RJ-45 connectors and Cat 5e/6 cable - extends the distance between computers and switch - up to 40m (130') for resolutions of 1280 x 1024 @75Hz
  • A dedicated console port for management from an external console - plus an extra PS/2 mouse port for external mouse use with the integrated LCD console
  • No software required - convenient computer selection via port selection switches, Hotkeys and intuitive On Screen Display (OSD) menus
  • OSD screen automatically adjusts to resolution changes - OSD tree structure makes finding and managing computers easy
  • Quickly and conveniently switch to any computer with station and port selection switches - LED displays indicate the station and port location
  • Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
  • Auto Scan feature for monitoring user-selected computers
  • Two level password security - only authorized users view and control the computers - up to four users plus an administrator with separate profiles for each
  • Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
  • Standard 105-key keyboard; Mac and Sun keyboard emulation
  • Dedicated keys to invoke Hotkey Mode and the OSD from the keyboard for quick access to these functions
  • Rack mountable in 19" System Rack (1U) - standard rack mount kit included - optional Easy Rack Mount (single person installation) kit available (requires separate purchase)
  • Keyboard Language support: English(US); English(UK); French, German, German(Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
  • Super A-Grade TFT LCD Panel; Zero Dead Pixel Guarantee
  • Multiplatform support: Windows 2000/XP/Vista, Mac, Linux, Unix, Sun, FreeBSD



Compatible KVM Adapter Cables:
KA7970 USB VGA KVM Adapter (5M Cable)
KA7570 USB VGA KVM Adapter
KA7170 USB VGA KVM Adapter with Composite Video Support
KA7169 USB DisplayPort Virtual Media KVM Adapter with Smart Card Support
KA7168 USB HDMI Virtual Media KVM Adapter with Smart Card Support
KA7166 USB DVI Virtual Media KVM Adapter with Smart Card Support



Package Contents

  • 1x 8-Port Cat 5 High-Density Dual Rail LCD KVM Switch with Standard Rack Mount Kit
  • 1x Firmware Upgrade Cable
  • 1x Power Cord (6ft.)
  • 1x User Manual
  • 1x Quick Start Guide



Console Connectors
Secondary Console 1 x USB Type A Female, 1 x 6-pin Mini-DIN Female
LEDs
Power On 1 (Blue)
On Line 8 (Green)
Station ID 2 x 7 Segment (Red)
Selected 8 (Red)
Port Selection Hotkeys ; OSD; Push Button
Power Consumption 120V/24W; 230V/24W
Scan Interval 1 - 255 secs
Emulation
Keyboard PS/2, USB, Serial
Mouse PS/2, USB, Serial
Computer Connections
Direct 8
Daisy Chain or Cascading 256 (Daisy Chain)
Daisy Chain 1 x DB-25 Male
CPU Connectors
Keyboard, Mouse, and Monitor 8 x RJ-45
Flash ROM Upgrade 1 x RJ11
Video Resolution 1280x 1024@ 75Hz; DDC2B
Environment
Operation Temperature 32~104F (0~40 C)
Storage Temperature -4~140F (-20~60 C)
Humidity 0~80% RH, Non-condensing
Physical Properties
Unit Weight 33.48 lbs.
Unit Dimension 18.89 x 27.60 x 1.73 in.
Unit Weight with package 46.2 lbs.
Case Dimension 32.5x 5.1x 26.5 in.
Case Weight 51.2 lbs.
Case Qty 1
