• Hardware
  • Advance processor provides lossless and low latency video transmissions up to 1920 x 1200 @ 60Hz; 24-bit color depth
  • Support standard HDMI resolutions from 640 x 480 up to 1920 x 1200
  • USB Virtual Media Support
  • Compliant with DP 1.2 and HDCP 1.3
  • Auto-MDIX – automatically detects cable type
  • Built-in 8KV/15KV ESD protection and 1KV surge protection
  • Slim, light and fanless design for silent operations that are energy efficient

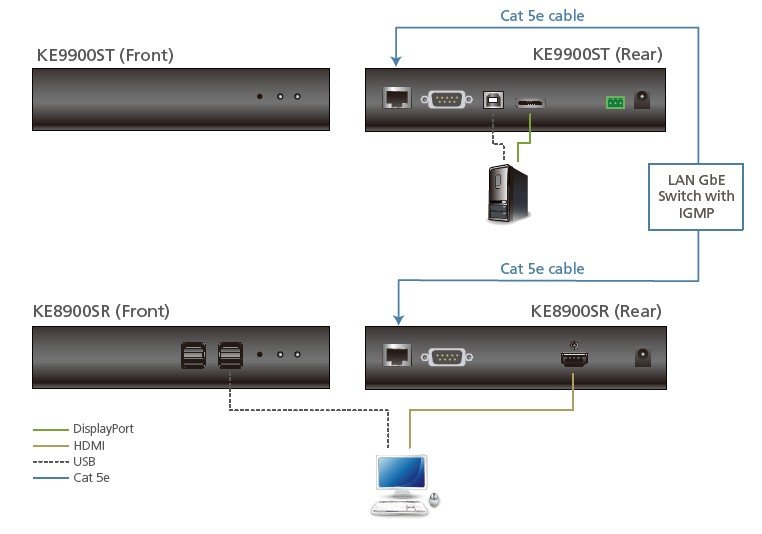

  • Support connection via Gigabit Ethernet port
  • Rack Mountable* and Wall Mountable
  • Mounting options:
    •  VE-RMK 1U Extender Rack Mount Kit*
    Note: *Refer to www.aten.com for more regarding the VE-RMK 1U Extender Rack Mount Kit.



• Management
  • Remotely access computers on your KVM installation via intranet
  • OSD (On Screen Display) on the Receiver configures both Tx/Rx units
  • EDID Expert™ – selects optimum EDID settings for smooth power-up and highest quality display
  • Video Compression Level – allows you to increase/decrease the video quality to adjust for appropriate network bandwidth
  • CLI – administrators can control all KE devices via RS-232 or Telnet by issuing commands
  • RS-232 serial ports – allow you to connect to a serial terminal for text menu, CLI, or serial devices such as touch screens and barcode scanners
  • Compatible with all KE devices



• Security
  • Dedicated LAN port for KE direct connections – can be isolated from the corporate network
  • Secure data transmission – AES encryption to secure Video/Keyboard/Mouse/Data transmission
  • Supports industry standard Transport Layer Security (TLS) protocol



• Virtual Media
  • Virtual Media enables file transfers, OS patching, software installations and diagnostic testing
  • Support USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
  • Support Smart Card/CAC Reader



• Advanced Features**
  • Flexible connections – allows multiple extender and matrix connections for multi-display installations and video wall applications
  • “Push” and “Pull” – share content instantly by just one click
  • Fast Switching – switch between different remote video resolutions on a local display within 0.3 second
  • Boundless Switching - simply move the mouse cursor across screen boundaries to switch between different receivers
  • Video Walls – create multiple video walls with up to 8 x 8 (64 displays max.) in each layout
  • Advanced Scheduling – improves efficiency and saves costs by allowing connections to be set based on time and date
  • Virtual Transmitter – to stream video, audio, USB, and serial sources independently
  • Support both internal and external authentication – external authentication supports LDAP, Active Directory, RADIUS and TACACS+
  • Advanced User Authorization Settings – administrators can set four access modes of permissions on Tx devices for collaboration or to avoid interference among users
  • Configurable user and group permissions for access and control of KE devices
  • Tx grouping of up to 4 sets of KE transmitters to support multi-display applications

    Note: **These advanced functions are supported when the KE devices are managed by KE Matrix Management Software (CCKM)



• Recommended Network Switches
  • Below are the network switches that have passed ATEN's stress tests using the KE Series extenders. Our tests streamed content over a network with a resolution of 1920 x 1200 @60Hz (KE69 Series) and 3840 x 2160 @30Hz (KE89 Series), 24bit color depth at 60 frames per second.
    •Cisco Catalyst 2960X / Catalyst 2960XR / Catalyst 3750
    •HP Procurve 2920
