ATEN-CM1164A

4-Port USB DVI Multi-View KVMP™ Switch

EAN: 4719264646867
Bu Ürünün Yer Aldığı Kategori(ler)

İlginizi Çekebilir

ATEN-ACS-1804

ATEN-CM1164A

ATEN-CM1284

ATEN-CS1644A

ATEN-CS1734B

ATEN-CS1744

ATEN-CS1754

ATEN-CS1764A

ATEN-CS1784A

ATEN-CS1794

ATEN-CS1924M

ATEN-CS1944

ATEN-CS64AZ

ATEN-CS64US

ATEN-CS724KM

ATEN-CS84U

DC IC814-ID

DC-12202-1

DS-12402

DS-12404

  • Multi-view console controls up to four video sources on one screen with display modes including Quad View, Picture in Picture (PiP), Picture by Picture (PbP), and Picture on Picture (PoP)
  • System configuration via front panel, OSD, IR Remote – display mode and port selection
  • Easily resize and / or reposition any PiP or PbP to suit users’ viewing needs
  • DCC (Daisy Chain Control) — Controls up to 3 additional CM1164A units from a single console
  • Cascade up to 2 levels — Controls up to 16 computers (with up to 4 x 4 Multi-view mode)
  • Boundless Switching – Simply moves the mouse cursor across windows to switch to other video sources
  • Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes the resolution when switching among different sources
  • HDCP 1.4 compliant
  • Supports RS-232 commands
  • Drop down menu – edit display windows and other functions with the mouse and on-screen control panel
  • Console mouse port emulation / bypass feature that supports most mouse drivers and multifunction mice
  • Console keyboard emulation / bypass feature that support most multimedia keyboards
  • Independent switching for USB peripheral port, audio function and KVM switch focus
  • Auto Scan feature
  • Power on detection
  • Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards
  • Full bass response provides a rich experience for 2.1 channel audio
  • Supports keyboard combinations via emulation (for Sun / Mac)
Computer Connections 4
Port Selection Pushbuttons, Hotkeys, IR Remote Control, On-Screen Display (OSD), Mouse, RS-232 Commands
Connectors
Console Ports 2 x USB Type A Female
1 x Single Link DVI-D Female (White)
2 x 3.5mm Audio Jack Female (Green; 1 x front panel,1 x rear panel)
2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)
2 x RJ-45
KVM Ports 4 x USB Type B Female
4 x Single Link DVI-D Female (White)
4 x 3.5mm Audio Jack Female (Green)
4 x 3.5mm Audio Jack Female (Pink)
Power 1 x IEC320 Jack
USB Hub 2 x USB 2.0 Type A Female
Switches
Selected 11 x Pushbuttons
LEDs
KVM 4 (Orange)
Audio 4 (Green)
USB 4 (Green)
Emulation
Keyboard / Mouse USB
Video 1920 x 1200 @ 60 Hz (DVI-D)
Scan Interval 5, 10, 15, 30, 60, 90 seconds (default: 5 seconds)
Power Consumption AC110V/9.7W:71BTU
AC220V/9.5W:70BTU
Environmental
Operating Temperature 0-40°C
Storage Temperature -10-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 2.46 kg ( 5.42 lb )
Dimensions (L x W x H) 43.72 x 16.40 x 4.40 cm
(17.21 x 6.46 x 1.73 in.)



Package Contents

  • 1x CM1164A 4-Port USB DVI Multi-View KVMPTM Switch
  • 4x KVM Cables (DVI-D, USB, Audio)
  • 1x Power Cord
  • 1x IR Remote Control
  • 1x Rack Mount Kit
  • 1x User Instructions




Reklam Çalışması

(10.12.2018)

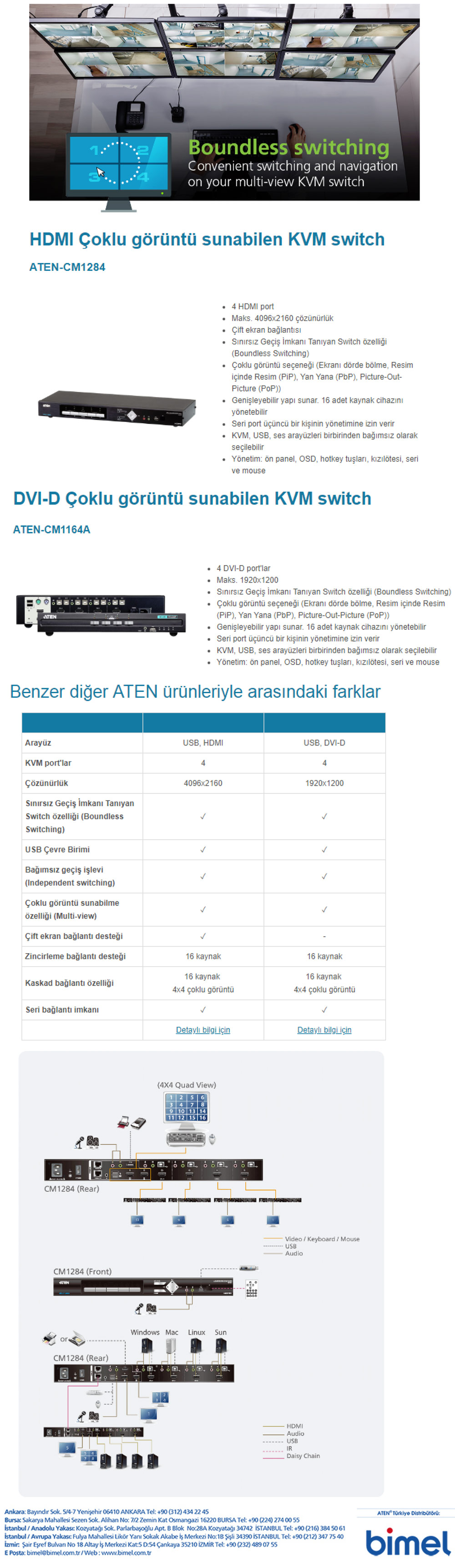

http://www.bimel.com.tr/tr/aten-reklamlari Tek Cihazla Birden Fazla Çözüm DVI KVM Over IP Sinyal Uzatma Cihazı│KE6900 Serisi

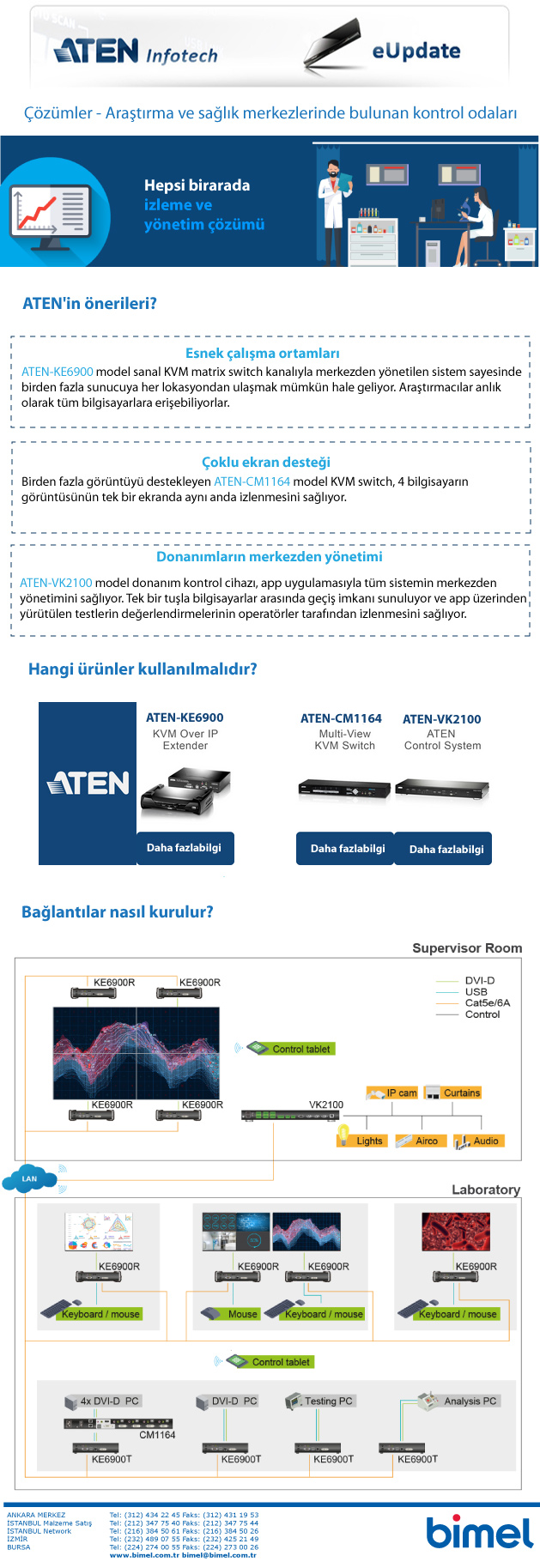

Çoklu Erkanlarla İzlenebilen Kontrol Odası Çözümü
