  • Yüksek kalite RGB görüntü iletimi
  • 350 MHz bantgenişliği
  • 305 metrelik rulo
  • Gecikme: 1 ~ 350 MHz 20nS/100 metre maksimum
  • Dış Kılıf Hammaddesi: FR PVC
  • Zırhsız
  • İletken Hammaddesi: 24 AWG

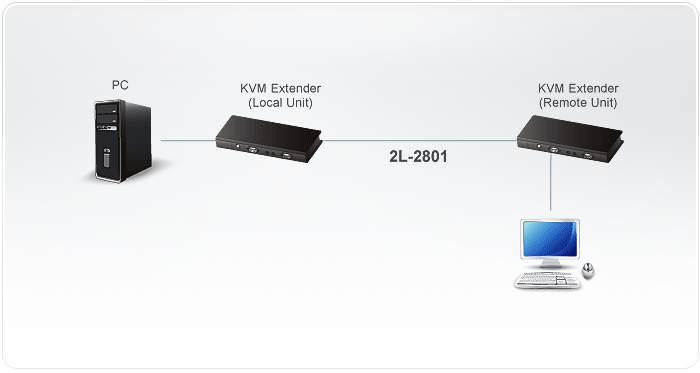

  • ATEN analog Cat 5 görüntü uzatma cihazları, KVM sinyal uzatma cihazları ve Cat 5 KVM switch'lerle birliklte kullanılır.
  • UL, ETL onaylı































Construction

Connectors Size 24 AWG
Construction Solid bare copper
Cond. Diam. 1/0.492±0.02 mm
Insulation Avg. Thick. 0.195 mm
Min. Thick. 0.185 mm
Diameter 0.880 ± 0.02 mm
Material HDPE
Color codes 1.Blue × White/Blue stripe
2.Orange × White/Orange stripe
3.Green × White/Green stripe
4.Brown × White/Brown stripe
Shielded Pair stranded 2 cores stranded
Assembly stranded 4 pair stranded
Jacketed Avg. Thick. 0.45 mm
Min. Thick. 0.41 mm
Diameter 4.80 ± 0.20 mm
Material FR PVC
Color Blue or other color


Electrical & Physical Properties

Item 24AWG × 4p
Cable Length 305 m/ 1000 ft
Conductor Resistance 9.38 Ohm/100m/20°C Max.
Mutual Capacitance 56 Pf/M Max.
Dielectric Strength Ac 1.5 Kv/2 Sec.
Spark Test 2.5 Kv
Insulation Unaged Tensile Strength 2400 Psi Min. (1.69 Kg/M(mxm))
Elongation 300% Min.
Aged Tensile Strength Unaged Min. 75%(100°C×48hrs)
Elongation Unaged Min. 75%(100°C×48hrs)
Jacketed Unaged Tensile Strength 2000 Psi Min.(1.41 Kg/M(mxm))
Elongation 100% Min.
Aged Tensile Strength Unaged Min. 85%(100°C×240hrs)
Elongation Unaged Min. 50%(100°C×240hrs)
Insulation Shrinkback 150m/M, 121°C±1°C×1hr≦9.5m/M
Cold Bend Test -20°C×4hrs No.Crack
Flame Retardant Test CMR
Ac Leakage Current Througt Overall Jacket Ac 1500v≦10 Ma
Dc Resistance Unbalance 5% Max.
Pair-To-Ground Capacitance Unbalance 330 Pf/100m Max.
Characteristic Impedance 1 - 350 Mhz 100±15 Ohms
Structural Return Loss 350 Mhz 10.6db Min.
Propagation Delay 350 Mhz 536ns/100m Max.
Delay Skew 1 - 350 Mhz 20ns/100m Max.
Weight 9.8 KG
